Adastra – rm244v 100v paging mixer

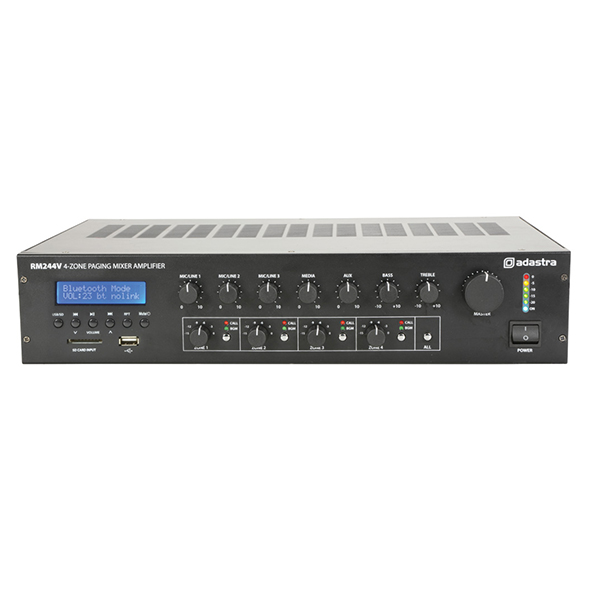

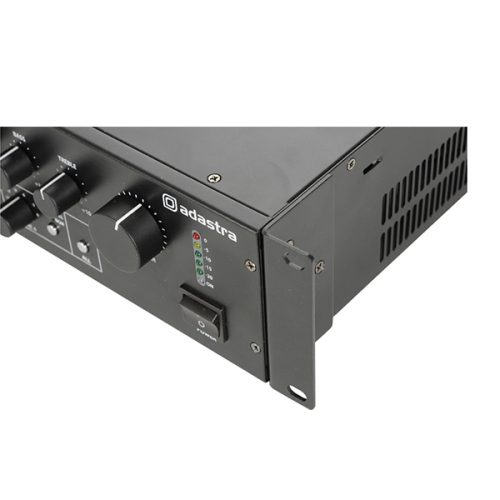

Adastra – rm244v 100v paging mixer-amplifier usb/sd/fm/bt 240W mixer-amplifier with 3 mic/line inputs, 1 aux input and a built-in media player. Connections for mic/line inputs are jack or XLR and channel 1 input has a variable mute for priority override. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. The media section can provide playback from Bluetooth, USB/SD media or an FM tuner. Output terminals are provided for 4 zones which share the output of the 240W amplifier, governed by 4 individual rotary volume switches on the front panel. RJ45 inputs on the rear panel allow connection for up to two CS4 call stations to enable paging to individual or all zones. The RM244V offers versatile 4-zone control without the expense of a quad amplifier and can even be operated as the front end to an expanded public address system.

Power supply: 110/230Vac, 50/60Hz (IEC)
Output power: rms240W (shared across 4 zones @ 100V)
Inputs: 3 x mic/line (jack/XLR), 1 x aux (RCA)
Input sensitivity: mic-47dBV
Input impedance: mic5k Ohms
Input sensitivity: line-10dBV
Input impedance: line1k Ohms
Paging station inputs: 2 x RJ45 (for optional RM-4B paging stations)
Line output: RCA
Sends: returns Pre out, amp in (RCA)
Channel controls: Ch1, Ch2, Ch3, Media and Aux volume
Output controls: Master volume, 4 x zone volumes & mutes
Equaliser: bass100Hz ±10dB
Equaliser: treble10kHz ±10dB
Phantom power: +20V (switchable inputs 1-3)
Audio source: USB/SD player, FM tuner and Bluetooth receiver
Bluetooth version: 2.1
Fire alarm contacts: 24V screw terminals
THD: +N<2% @ 1kHz (rated power) Protection: Short circuit, overload, overheat Speaker: outputs4 x 100V (modular terminal block) Dimensions: 430 x 315 x 89mm Weight: 10.4kg
